Installing the trim strip

Precondition

Front door is open.

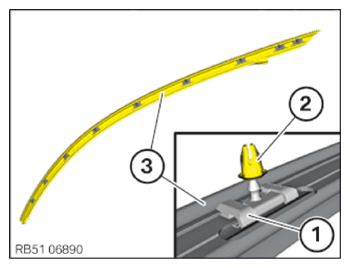

• Check clamp (1) for damage.

  Defective or missing clamps (1) need to be replaced.

• If necessary, release the nozzles (2) from the clamps (1) and mount them on the bodywork.

  Faulty or missing nozzles (2) must be replaced.

• Correctly position the clamps (1) on the trim strip (3).

  Courtesy of BMW OF NORTH AMERICA, INC.

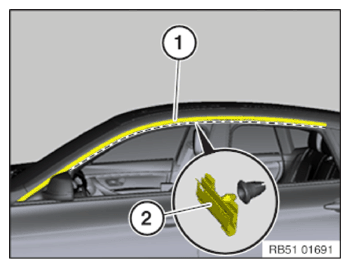

• Carefully fit the trim strip (1) and thread the trim strip on to the side window.
• Carefully clip in the trim strip (1) starting at the rear with the clips (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

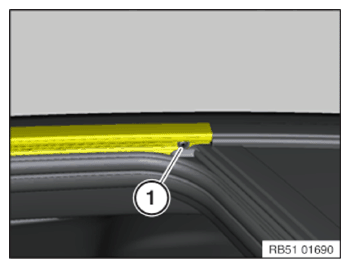

• Tighten down screw (1).

  Courtesy of BMW OF NORTH AMERICA, INC.
