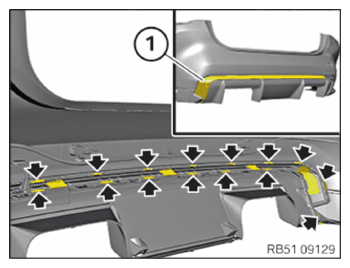

Installing the trim on the left bumper cover

• Check all detents (arrows) for damage, replace the trim (1) if necessary,
• Attach trim (1)  and engage it into the detents (arrows).

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE REAR ATTACHMENT PART .
• Refer to INSTALLING THE COVER FOR THE TOW FITTING .
• Refer to INSTALLING THE REAR BUMPER COVER .
• Refer to INSTALLING THE TAIL LIGHT ON THE LEFT AND RIGHT SIDE PANELS .
• Refer to INSTALLING THE TRIM IN THE WATER CHANNEL ON THE LEFT AND RIGHT .
• Refer to INSTALLING LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL LEFT AND RIGHT PARTIALLY .
• Refer to INSTALLING LOADING EDGE TRIM .
• Refer to INSTALLING LUGGAGE COMPARTMENT FLOOR COVERING .
