Installing the rear bumper cover

• Position the bumper cover (1) together with a support person.
• Connect and lock the present connectors.

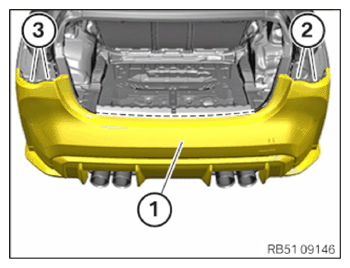

• Clip in the bumper cover (1) at the detents along the dashed line.
• Clip in the bumper cover (1) to the detents (2) and (3).

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: Perform the steps on the left and right side.

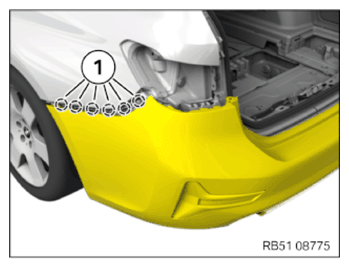

• Clip in the bumper cover with the detents (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: Perform the steps on the left and right side.

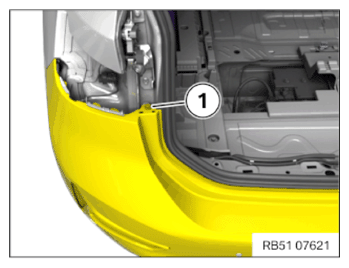

• Tighten down screw (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Rear center bumper cover to rear center guide
  Hexagon screw for thermoplastic	Tightening torque	2.5 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

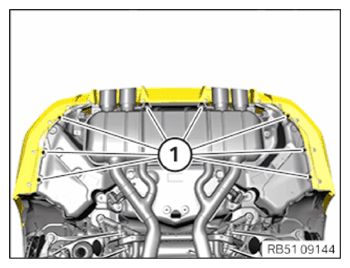

• Tighten the screws (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Rear bumper cover mount to support for rear bumper
  Hexagon screw for thermoplastic	Tightening torque	2.6 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: Perform the steps on the left and right side.

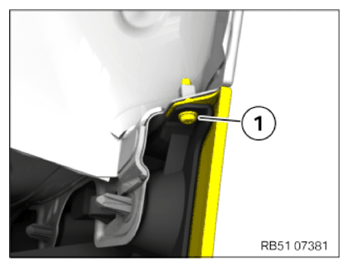

• Tighten down screw (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Rear bumper cover to rear side panel
  Hexagon screw for thermoplastic	Tightening torque	2.5 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: Perform the steps on the left and right side.
  NOTE: To provide a better overview: Schematic diagram with partially hidden components.

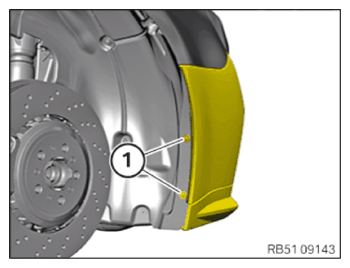

• Tighten the screws (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Wheel arch cover
  screw Plastic nut	3 Nm 2.6 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE TAIL LIGHT ON THE LEFT AND RIGHT SIDE PANELS .
• Refer to INSTALLING THE TRIM IN THE WATER CHANNEL ON THE LEFT AND RIGHT .
• Refer to INSTALLING THE LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL ON THE LEFT AND RIGHT .
• Refer to INSTALLING LOADING EDGE TRIM .
• Refer to INSTALLING LUGGAGE COMPARTMENT FLOOR COVERING .
