Removing the tail light on the left and right side panel
Preliminary work
- Refer to REMOVING LUGGAGE COMPARTMENT FLOOR COVERING .
- Refer to REMOVING THE LOADING EDGE TRIM .
- Refer to REMOVING LEFT AND RIGHT LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANELS .
- Refer to REMOVING THE TRIM FROM THE LEFT AND RIGHT WATER CHANNELS .
NOTE:
Description is for left component only. Procedure on the right side is identical.
Removing the tail light on the side panel
NOTE:
Schematic diagram is for example purposes. Some parts may differ in certain details.

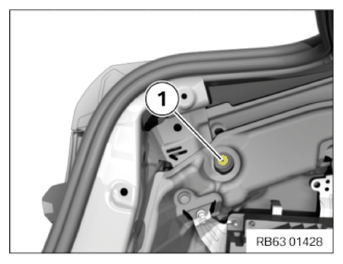

- Loosen nut (1).

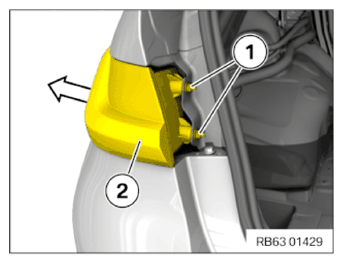

- Release nuts (1) and feed out the tail light on the side panel (2) in arrow direction.NOTE: TECHNICAL INFORMATION
Observe the note on unlocking and disconnecting plug connections.

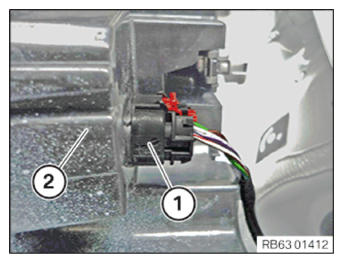

For additional information see: 6113... UNLOCKING AND DISCONNECTING DIFFERENT PLUG CONNECTIONS . - Unlock plug connection (1) and disconnect.
- Remove the tail light on the side panel (2).
