Installing the front section of the front wheel arch cover
NOTE:

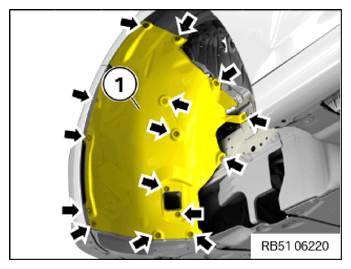

To provide a better overview: Schematic diagram with partially hidden components.
- Installing the front section of the front wheel arch cover (1).
- Tighten screws (arrows).TIGHTENING TORQUE SPECIFICATIONS
Wheel arch trim panel, front Thermoplastic hexagon screw Tightening torque 2.6 Nm
Follow-up work
- Refer to MOUNTING THE WHEEL .
