Install upper cross connection

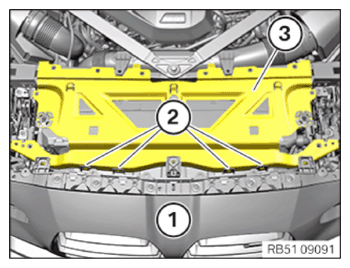

• Guide in cross connection (3) and position it correctly.
• Carefully pull out bumper cover (1) a little as shown.
• Mount the expanding rivets (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

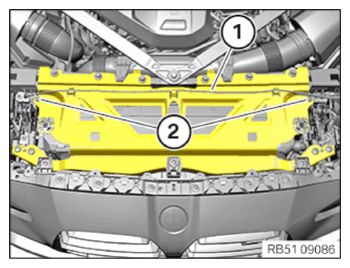

• Position the bumper cover correctly and tighten screws (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Adapter to the front panel
  Oval-head screw with spring washer	Tightening torque	4.6 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

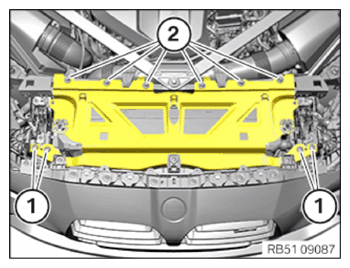

• Tighten the screws (2).
  TIGHTENING TORQUE SPECIFICATIONS



  Cross connection at the top to rear cross connection
  M8x20 screw	Tightening torque	28 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

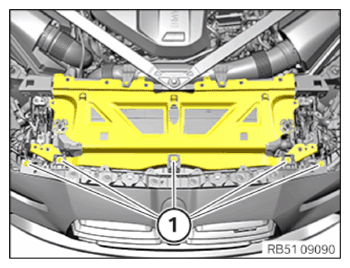

• Tighten the screws (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Cross connection at the top to the lock support
  Oval-head screw	Tightening torque	28 Nm

• Tighten the screws (2).
  TIGHTENING TORQUE SPECIFICATIONS



  Cross connection, top
  M6x20	Tightening torque	11.8 Nm

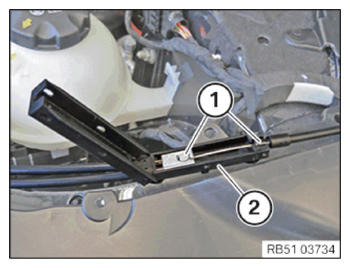

• Hook Bowden cable (1) into the upper cross connection.
• Position Bowden cable bracket (2) together with the Bowden cables and hook Bowden cable (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

  Courtesy of BMW OF NORTH AMERICA, INC.

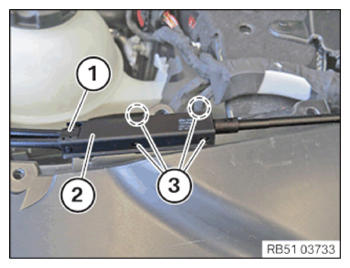

• Clip Bowden cable bracket (1) into the body.
• Close lid (2) and engage it into snap-in lugs (3).

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE CENTER ENGINE COMPARTMENT COVER .
• Refer to INSTALLING THE FRONT HOOD SEAL .
