Installing the front-end strut

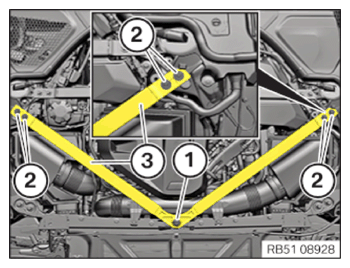

Install the front-end brace (3) and ensure the correct installation position as shown.
Replace the screw (1).
Parts: Screw

Tighten down screw (1).

Courtesy of BMW OF NORTH AMERICA, INC.

TIGHTENING TORQUE SPECIFICATIONS

Front-end strut to upper rear connection
M 10x35 screw Replace screw	Tightening torque Angle of rotation	56 Nm 90°

Tighten nuts (2).

TIGHTENING TORQUE SPECIFICATIONS

Strut brace/ftont-end strut to holder
hexagon nut M8	Tightening torque	28 Nm
