Body Equipment -- Repair M4 (2 Of 2) (G82 & G83)
>>
51 49 Tailgate Trim Panel
>>
51 49 000 Removing and installing/replacing the tailgate trim panel (M4 Convertible)
>>
Remove tailgate trim panel
Remove tailgate trim panel

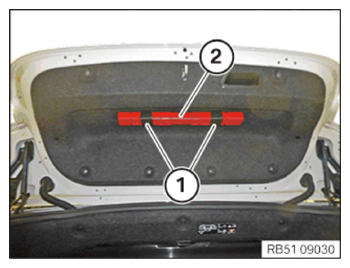

Open holder (1).
Remove the warning triangle (2).
Courtesy of BMW OF NORTH AMERICA, INC.

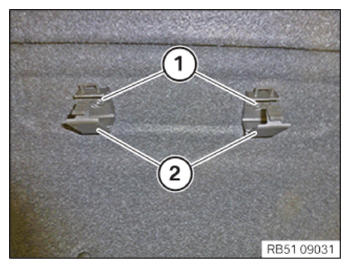

Release the screws (1) and remove the holders (2).
Courtesy of BMW OF NORTH AMERICA, INC.

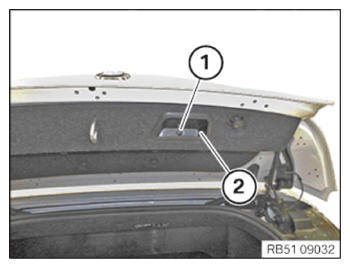

Release the screw (1) and remove the handle recess (2).
Courtesy of BMW OF NORTH AMERICA, INC.

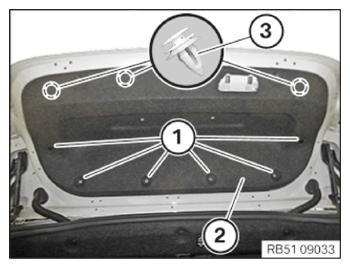

Release the expanding rivet (1).
Release and remove tailgate trim panel (2) at the clips (3).
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
