Installing loading edge trim

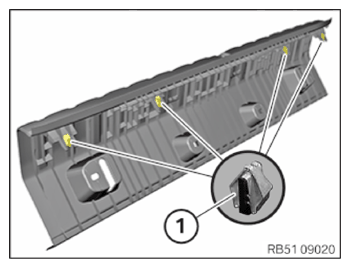

• Check clamp (1) for damage.

  Defective or missing clamps (1) need to be replaced.

  Courtesy of BMW OF NORTH AMERICA, INC.

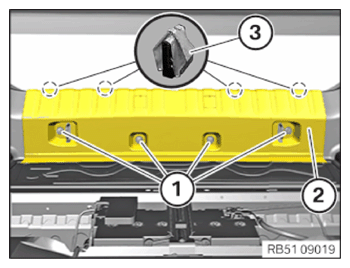

• Feed the loading edge trim (2) into the tailgate seal.
• Fit the trim of the loading edge (2) at the detents (3) and clip it in to the bottom.
• Secure expanding rivet (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING LUGGAGE COMPARTMENT FLOOR COVERING .
