Remove luggage compartment wheel arch trim panel on left

Preliminary work

• Refer to REMOVING LUGGAGE COMPARTMENT FLOOR COVERING .
• Refer to REMOVING EMERGENCY WHEEL .
• Refer to REMOVING THE LOADING EDGE TRIM .

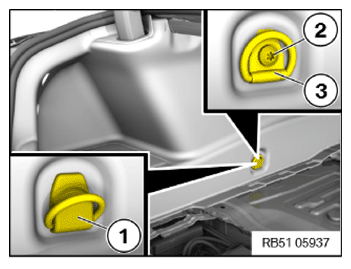

• Remove the cover (1).
• Loosen screw (2).
• Remove lashing point (3).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Reposition left rear seat backrest.

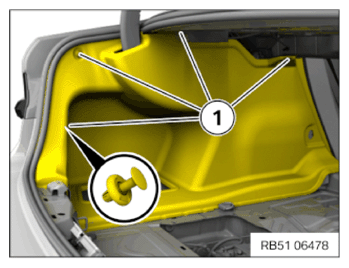

• Loosen the expanding rivet (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

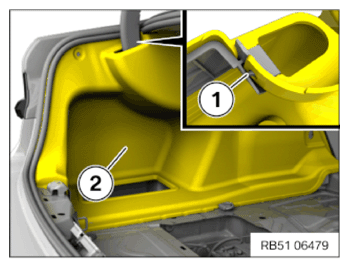

• Press luggage compartment wheel arch trim panel lug (2) on the outer side of the hinge forwards over the stop on the trim (1).
• Guide out luggage compartment wheel arch trim panel (2) below the sealing lip for the trunk lid and the side trim panel in the rear passenger compartment.
• Remove luggage compartment wheel arch trim panel (2).

  Courtesy of BMW OF NORTH AMERICA, INC.
