Install luggage compartment wheel arch trim panel, left

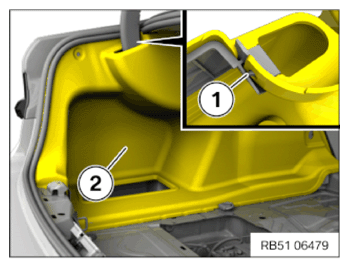

• Feed in the luggage compartment wheel arch trim panel (2) under the side trim panel in the rear passenger compartment and the sealing lip for the trunk lid.
• Feed in the lug of the luggage compartment wheel arch trim panel (2) on the outer side of the hinge into the stop on the trim (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

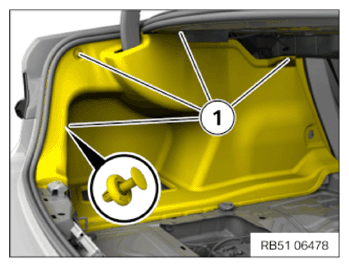

• Secure expanding rivet (1).
• Put up the left rear seat backrest.

  Courtesy of BMW OF NORTH AMERICA, INC.

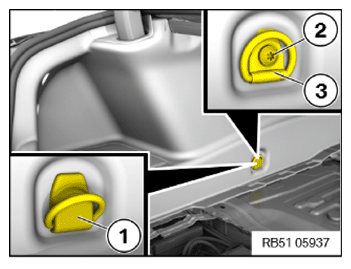

• Position the lashing point (3).
• Tighten down screw (2).
  TIGHTENING TORQUE SPECIFICATIONS



  Lashing point to body
  tightening torque		19 Nm

• Install cover (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING LOADING EDGE TRIM .
• Refer to INSTALLING LUGGAGE COMPARTMENT FLOOR COVERING .
