Removing the trim panel for pedal assembly

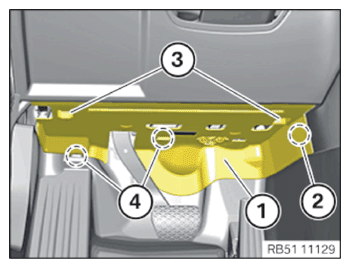

- Version A:
- Feed out the trim panel for pedal assembly (1) inwards in area (2).
- Turn the locks (3) by 90°.
- Detach the trim panel for pedal assembly (1) to the rear from the guides (4).
- Unlock associated plug connection and disconnect.

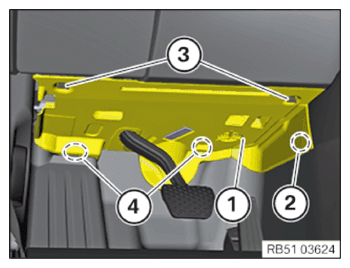

- Version B:
- Feed out the trim panel for pedal assembly (1) inwards in area (2).
- Release screws (3).
- Detach the trim panel for pedal assembly (1) to the rear from the guides (4).
- Unlock associated plug connection and disconnect.
