Removing mid-range speaker at the rear of the side trim panel
NOTE:

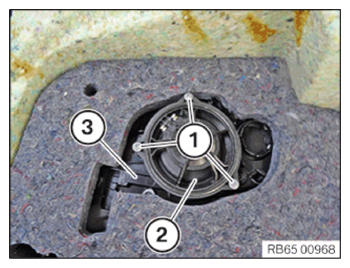

Schematic diagram is for example purposes. Some parts may differ in certain details.
- If necessary, slide the acoustic fleece to one side.
- Loosen screws (1)
.
- Remove the mid-range speaker (2)
from the side trim panel (3)
.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
