Install the tweeter in the side trim panel at the rear
NOTE:

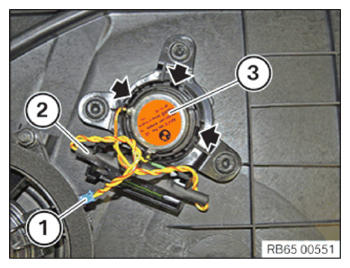

Schematic diagram is for example purposes. Some parts may differ in certain details.
- Attach the tweeter (3)
and engage into the locking mechanisms (arrowed).
- Clip in the resistor (2)
.
- Connect plug connection (1)
and lock.
- If necessary, position the acoustic fleece correctly.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
