Install the holder of the positive battery cable

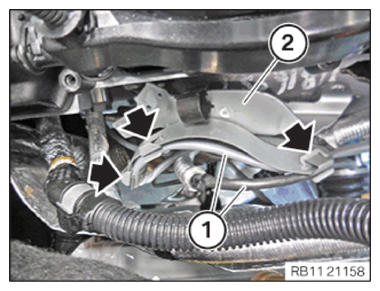

- Feed in bracket (2) of positive battery cable and position.
- Fasten cable (1) in clamps (arrows).CAUTION: Improper routing of the positive battery cable .
Risk of short circuits!- Route the positive battery cable without abrasions and do not trap.

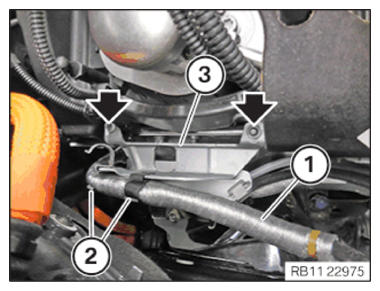

- Feed in bracket (3) of positive battery cable and position.
- Tighten the screws (arrows).TIGHTENING TORQUE SPECIFICATION
Holder, positive battery cable to cylinder head cover 6X18 Tightening torque 6 Nm - Secure the positive battery cable (1) at the clamps (2).
- Feed in bracket (2) of positive battery cable and position.
- Fasten cable (1) in clamps (arrows).

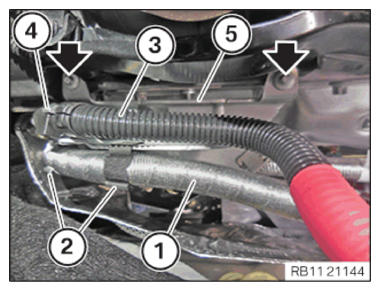

- Version A (without mild hybrid technology): CAUTION: Improper routing of the positive battery cable .
Risk of short circuits!- Route the positive battery cable without abrasions and do not trap.
- Feed in bracket (5) of positive battery cable and position.
- Tighten screws (arrows).TIGHTENING TORQUE SPECIFICATION
Holder, positive battery cable to cylinder head cover 6X181 Tightening torque 6 Nm - Secure the positive battery cable (1) at the clamps (2).
- Secure the positive battery cable (3) at the clamps (4).

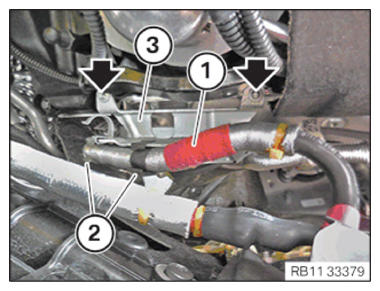

- Version B (with mild hybrid technology): CAUTION: Improper routing of the positive battery cable .
Risk of short circuits!- Route the positive battery cable without abrasions and do not trap.
- Feed in bracket (3) of positive battery cable and position.
- Tighten screws (arrows).TIGHTENING TORQUE SPECIFICATION
Holder, positive battery cable to cylinder head cover 6X18 Tightening torque 6 Nm - Secure the positive battery cable (1) at the clamps (2).
