Install all ignition coils

NOTE: The description is provided only at one component. The procedure is the same for all other components.

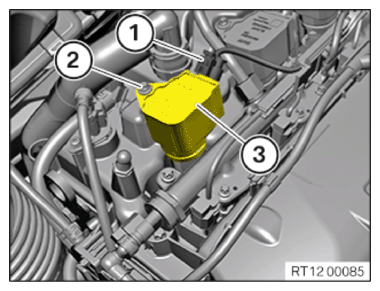

Install ignition coil

Tighten down screw (2).

TIGHTENING TORQUE SPECIFICATION

Ignition coil
Screw	Tightening torque	8 Nm

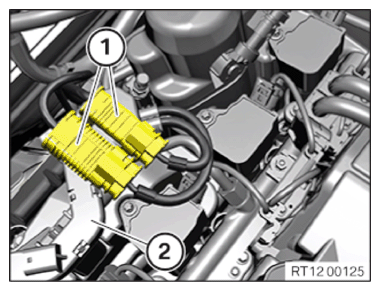

Connect connectors (1) and lock.
The connector (1) must engage audibly.
Mount the connector (1) of the Lambda oxygen sensor and the oxygen sensor monitor on the cable duct (2).
