If installed: Install underbody protection for the steering

Precondition

Front underbody protection is removed.

Courtesy of BMW OF NORTH AMERICA, INC.

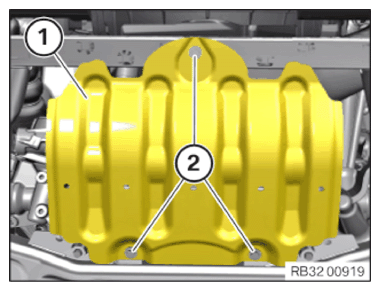

• Position the underbody protection (1).
• Tighten down screws (2).
  TIGHTENING TORQUE SPECIFICATION



  Underbody protection steering on front subframe
  Multi-purpose bolt M10	Tightening torque  56 Nm

  TIGHTENING TORQUE SPECIFICATION



  Underbody protection steering on front subframe
  Hexagon screw M6	Tightening torque  8 Nm
