Install luggage compartment floor covering

Install front luggage compartment floor covering

• Install luggage compartment floor covering (2)  into the vehicle.
• Mount the expanding rivets (1)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

• Mount the expanding rivets (1)  .
• Fold up the rear seat backrest.

Courtesy of BMW OF NORTH AMERICA, INC.

Install the rear luggage compartment floor covering

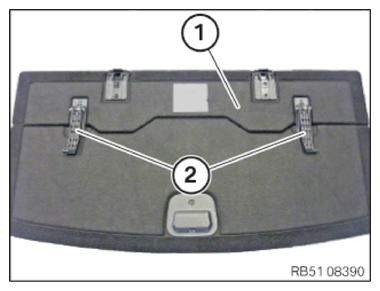

• Insert the luggage compartment floor covering (1)  while also driving the guides (2)  into the holders below.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Engage the luggage compartment floor covering (1)  onto the detents (2)  in the area of the dashed line.

Courtesy of BMW OF NORTH AMERICA, INC.
