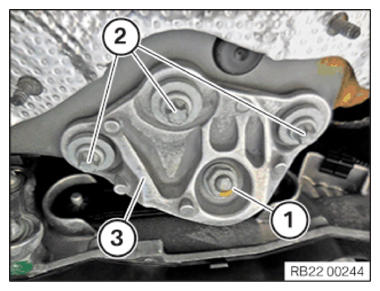

(Installing the transmission bearing support)

• Thread in and install the transmission bearing support (3)
• Tighten down screws (2)
  (TIGHTENING TORQUE SPECIFICATIONS)



  Transmission bearing support to body
  M8	Tightening torque	19 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten nut (1)
  (TIGHTENING TORQUE SPECIFICATIONS)



  Rubber mount to transmission bearing support
  M8	Tightening torque	19 Nm

• Feed in and install the heat shield (2)
• Tighten nuts (1)

(TIGHTENING TORQUE SPECIFICATIONS)

Heat protection plate
Sheet metal nut	Tightening torque	3 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
