Remove the boost pressure sensor from the intake plenum

WARNING: Hot surfaces
Risk of burning!

• Perform all work only on components that have cooled down

NOTE: RISK OF DAMAGE
Electrostatic discharge
Damage to or destruction of electrical components

• Leave the electrical components in their original packaging until they are being installed. Only use the original packaging for returning the product. Always
• package removed components straight away
• Read and comply with user information on using the associated special tool 12 7 060
• Only tap the housings of electrical components. Do not tap pins or multi-pin connectors directly
• Wear electrically conductive clothing and antistatic shoes (with ESD symbol)
• For additional information see: 61 35... NOTES on ESD (electrostatic discharge) protection

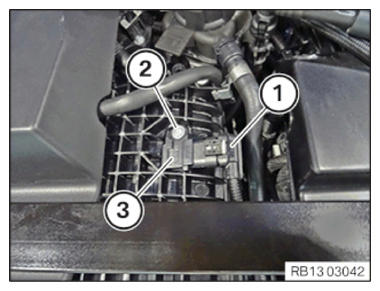

• Unlock plug connection (1) and disconnect
• Loosen screw (2)

• Pull out the charging pressure sensor (3) and remove it

Courtesy of BMW OF NORTH AMERICA, INC.
