Installing the cover on the inside of the window frame at the rear

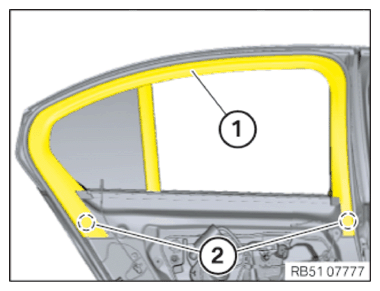

• Start from the rear and connect the cover (1) to the doorframe
• Clip in cover (1) into clips (2)

  Courtesy of BMW OF NORTH AMERICA, INC.

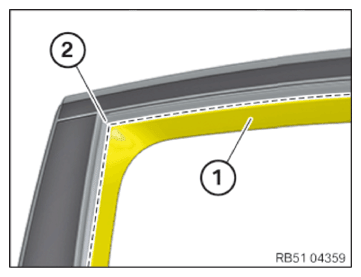

• Correctly feed in cover on window frame (1) into the gap of the rubber window seal (2)
• Make sure that the cover (1) is correctly fitted on the door weather strip

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE REAR DOOR TRIM PANEL .
