Removing the anti-roll bar
WARNING:
Vehicle may slip off the vehicle hoist if the vehicle hoist is handled incorrectly
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Observe safety instructions on raising the vehicle using a vehicle hoist
- For additional information see: 00... Raise the vehicle using a VEHICLE LIFT .
Preliminary work
- Refer to REMOVING THE FRONT SPOILER .
- Refer to REMOVING THE FRONT UNDERBODY PROTECTION .
- Refer to REMOVING THE LEFT AND RIGHT FRONT UNDERSHIELD .
- Refer to REMOVING THRUST FIELD .
- Refer to LOOSENING THE ANTI-ROLL BAR LINK ON THE LEFT AND RIGHT FROM THE ANTI-ROLL BAR .

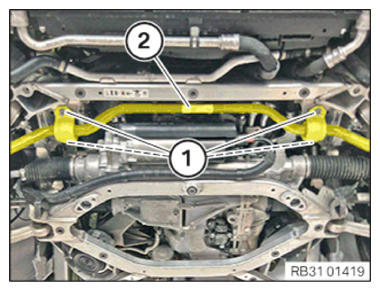

- Loosen screws (1)
- Feed out and remove the anti-roll bar (2)
