Installing acoustic cover

NOTE: RISK OF DAMAGE
Damage to the acoustic cover/design cover
Jerky movements during disassembly and application of excessive force during installation may result in breakage of the acoustic cover/design cover

Disassemble or mount the acoustic cover/design cover carefully
Disassemble or mount snap-lock couplings of the ball pivots one after the other
Disassemble or mount the acoustic cover/design cover only at temperatures > 20°C
Use only distilled water as an auxiliary material during installation, no lubricants

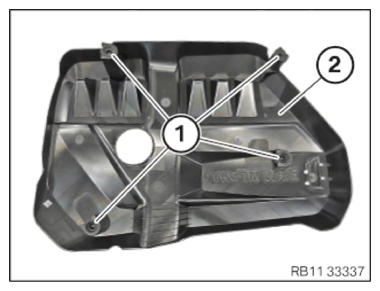

Check if rubber mount (1) fits correctly in acoustic cover (2)

Courtesy of BMW OF NORTH AMERICA, INC.

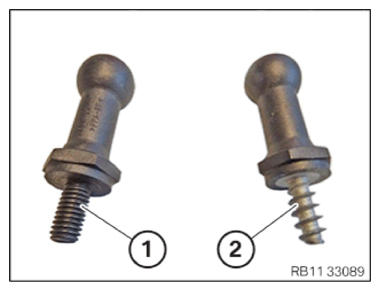

Check ball hub (1) for damage and, if necessary, replace ball hub (1)

Courtesy of BMW OF NORTH AMERICA, INC.
Replace damaged ball hubs (1) and (2)
Parts: Ball pin

TIGHTENING TORQUE SPECIFICATIONS

Ball hub on the cylinder head cover/intake plenum
	tightening torque	5 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

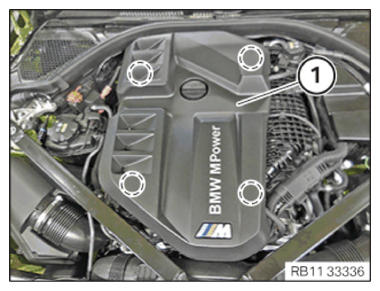

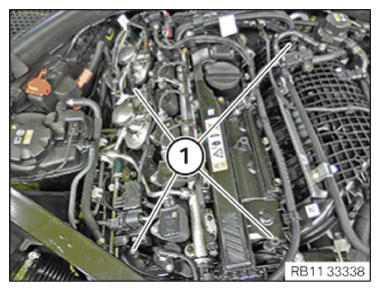

Install acoustic cover (1) and attach it in the rubber mounts (marks)

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING THE STRUT BRACE .
