Drain the coolant from the low-temperature cooling system
Precondition
- Switch off ignition
WARNING:
Hot surfaces
Risk of burning!
Risk of burning!
- Perform all work only on components that have cooled down
WARNING:
Hot fluids
Risk of scalding!
Risk of scalding!
- Conduct all work in the vehicle wearing appropriate personal protective equipment only
CAUTION:
Materials harmful to health
Contact with fluids harmful to health!
Contact with fluids harmful to health!
- Note and follow safety instructions on containers
- Conduct all work in appropriate personal protective equipment only
NOTE:
TECHNICAL INFORMATION
Filling without the vacuum filling equipment (watering can filling) is not permitted
If this is not observed, there is a risk of component damage or engine damage
The filling specification must be observed
It is essential to visually check the vacuum filling equipment before use to check that it is functioning correctly and clean
It is not permissible to operate the vehicle if the filling procedure has not been fully completed. Otherwise there may be functional limitations (degradation) or overheating
A bleeding procedure is required after a part has been exchanged in the cooling system and/or after refilling the cooling system
Filling without the vacuum filling equipment (watering can filling) is not permitted
If this is not observed, there is a risk of component damage or engine damage
The filling specification must be observed
It is essential to visually check the vacuum filling equipment before use to check that it is functioning correctly and clean
It is not permissible to operate the vehicle if the filling procedure has not been fully completed. Otherwise there may be functional limitations (degradation) or overheating
A bleeding procedure is required after a part has been exchanged in the cooling system and/or after refilling the cooling system
NOTE:
TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations
Preliminary work
- Refer to REMOVING THE FRONT SPOILER .
- Refer to REMOVING THE FRONT UNDERBODY PROTECTION .
- Refer to REMOVING THE FRONT BOTTOM SIDE COVER .
- Refer to REMOVING THE RIGHT HAND FRONT BOTTOM SIDE COVER .
- Refer to PARTIALLY RELEASING THE ENGINE OIL COOLER .
WARNING:
Hot surfaces
Risk of burning!
Risk of burning!
- Perform all work only on components that have cooled down
NOTE:
TECHNICAL INFORMATION
Immobilization period-long fill of coolant!
Do not reuse used coolant
When replacing and removing components which rely on the corrosion protection effect of the coolant, it is essential to change the coolant. The cooling system must therefore be emptied and refilled
In the case of other removal work involving the draining of part quantities of coolant, the coolant level must be topped up with new coolant
Immobilization period-long fill of coolant!
Do not reuse used coolant
When replacing and removing components which rely on the corrosion protection effect of the coolant, it is essential to change the coolant. The cooling system must therefore be emptied and refilled
In the case of other removal work involving the draining of part quantities of coolant, the coolant level must be topped up with new coolant
NOTE:
TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations
- Loosen sealing cap (1)

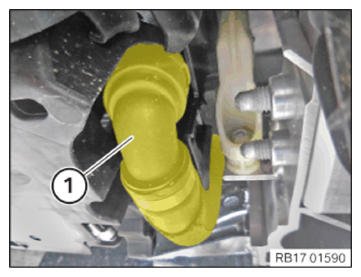

- Unlock and disconnect the coolant line (1). Catch and dispose of escaping coolant
