Removing all ignition coils
Preliminary work
- Refer to REMOVING SUSPENSION STRUT BRACE .
- Refer to REMOVING THE ACOUSTIC COVER .
WARNING:
Hot surfaces
Risk of burning!
Risk of burning!
- Perform all work only on components that have cooled down
NOTE:
RISK OF DAMAGE
Damage to the ignition coil
The silicone hose of the ignition coil must not be contaminated by fuel as this can lead to failure of the ignition coil
Damage to the ignition coil
The silicone hose of the ignition coil must not be contaminated by fuel as this can lead to failure of the ignition coil
- When working on the fuel system, cover the ignition coils with suitable materials and remove where required
- Do not oil or grease the silicone tube of the spark plug socket. Do not use any protection or maintenance products (e.g. silicone spray, rubber care products, rust remover, etc.)
NOTE:
RISK OF DAMAGE
Electrostatic discharge
Damage to or destruction of electrical components
Electrostatic discharge
Damage to or destruction of electrical components
- Leave the electrical components in their original packaging until they are being installed. Only use the original packaging for returning the product. Always package removed components straight away
- Read and comply with user information on using the associated special tool 12 7 060
- Only tap the housings of electrical components. Do not tap pins or multi-pin connectors directly
- Wear electrically conductive clothing and antistatic shoes (with ESD symbol)
- For additional information see: 61 35... NOTES on ESD (electrostatic discharge) protection
- Loosen screws (1)

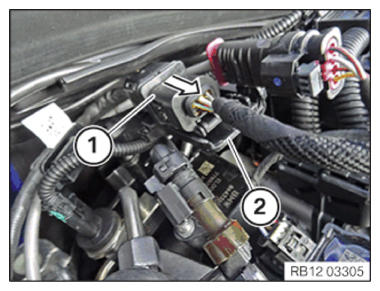

- Feed out plug connection (1) from the holder (2) in arrow direction and set aside
- Unlock plug connection (1) and disconnect
- Unlock the lock (1)
- Remove the wiring harness section (2) and put to one side
- Unlock the locks (arrows)
- Remove the wiring harness section (1) and put to one side
- Detach holder (1) from b>he ball pivot (2)
- Lay holder (1) to one side
NOTE:
The description is provided only at one component. The procedure is the same for all other components
- Unlock plug connection (1) and disconnect
- Loosen screw (2)
- Remove the ignition coil (3)
