22 32 050 Replacing cross member for automatic transmission mounting (RWD vehicles) (230i coupe/convertible, M240i coupe/convertible)

Necessary preliminary tasks:

• Remove rear UNDERBODY PROTECTION .
• Support transmission with lifter.

Removal:

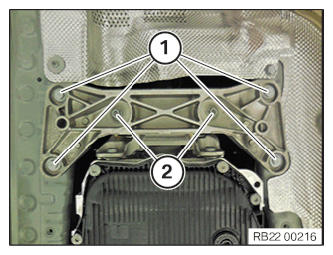

Loosen screws (1).

Unscrew nuts (2).

Remove cross member.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

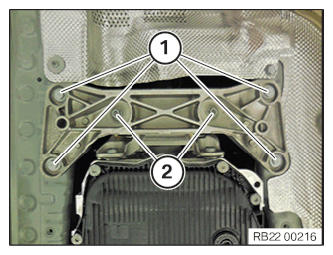

Install cross member.

Tighten down nuts (2).

Tightening torque 22 32 4AZ .

Tighten down screws (1).

Tightening torque 22 32 3AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install heat shield.
• Refer to INSTALLING THE REAR UNDERBODY PROTECTION .
