33 31 017 Removing and installing/replacing vibration absorber (2' Series coupe and convertible, 2017-2021)

Special tools required:

• 2 240 515
• 83 30 2 444 999

Attention!

Different vibration absorbers are installed depending on the vehicle equipment and motorization.

The vibration absorbers have different nominal frequencies depending on the equipment and motorization.

The nominal frequency is noted on the vibration absorber and its observation is mandatory.

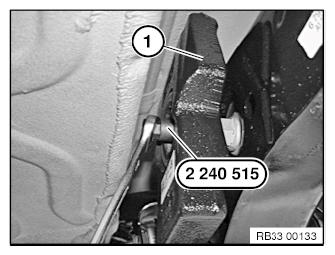

Release the screw M8 on the vibration absorber (1) with special tool 2 240 515  and ring spanner (AF 13).

Tightening torque 33 17 3AZ .

Remove vibration absorber (1).

Courtesy of BMW OF NORTH AMERICA, INC.

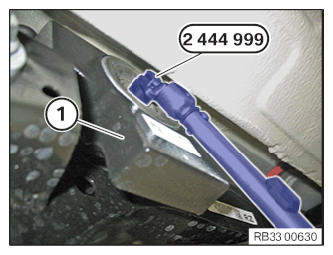

Release the screw on the vibration absorber with special tool 83 30 2 444 999 and wrench socket.

Remove vibration absorber (1).

Tightening torque 33 17 7AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

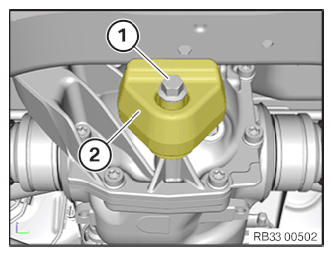

Loosen screw (1).

Tightening torque 33 17 4AZ .

Remove vibration absorber (2).

Courtesy of BMW OF NORTH AMERICA, INC.

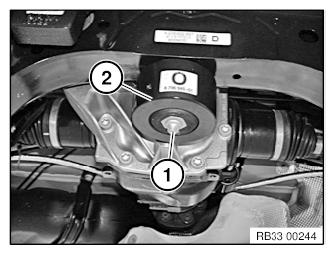

Loosen screw (1).

Tightening torque 33 17 5AZ .

Remove vibration absorber (2).

Installation note:

It is mandatory to ensure correct installation position. The flat side of the vibration absorber (2) faces the rear axle support.
