13 90 500 Replacing tank venting valve (230i and 230i xDrive coupe/convertible)

Necessary preliminary tasks:

• Refer to REMOVING ACOUSTIC COVER .

Removal:

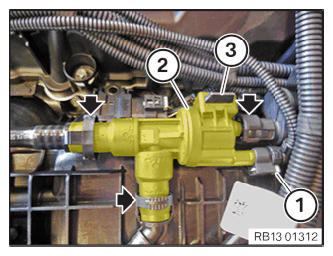

Unlock and loosen the tank ventilation lines along the arrows.

Unlock and disconnect plugs (1).

Feed out and remove tank vent valve (2) from holder (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Fasten tank vent valve to holder (3).

Secure and lock the tank ventilation lines along the arrows.

The tank ventilation lines must audibly engage.

Attach and lock connector (1).

Connector (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Refer to INSTALLING ACOUSTIC COVER .
