34 00 027 Replacing fluid in brake system (M Sport brake) (2' Series coupe and convertible, 2017-2021)

NOTE: READ AND COMPLY WITH GENERAL NOTES .
The capacities are oil change quantities. See "Fluid Capacities" tab for the selected vehicle. (capacities)

Necessary preliminary work:

Refer to REMOVING THE LEFT ENGINE COMPARTMENT COVER .

CAUTION: When carrying out repair work to the brake system, follow the procedure set out in BLEEDING BRAKE SYSTEM WITH DSC .
Use only BMW-approved brake fluids, see BMW OPERATING FLUIDS .

Connect bleeder unit to expansion tank (1) and switch on.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Follow the applicable machine manufacturer's operating instructions.
Charging pressure should not exceed 2 bar.

Completely flush brake system, rear .

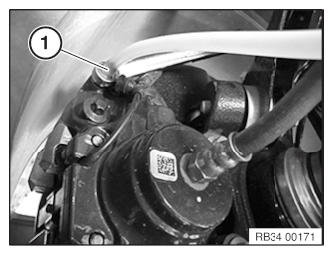

Connect tank ventilation line (1) with collecting vessel to vent valve on rear right brake caliper.

Courtesy of BMW OF NORTH AMERICA, INC.

Open bleeder valve and purge until clear, bubble-free brake fluid emerges.

Close vent valve.

Carry out the same procedure on the rear left wheel brake.

Completely flush brake system, front right outer .

Courtesy of BMW OF NORTH AMERICA, INC.

Connect tank ventilation line (1) with collecting vessel to vent valve on front right outer brake caliper.

Open bleeder valve and purge until clear, bubble-free brake fluid emerges.

Close vent valve.

Completely flush brake system, front right inner .

Courtesy of BMW OF NORTH AMERICA, INC.

Connect tank ventilation line (1) with collecting vessel to vent valve on front right inner brake caliper.

Open bleeder valve and purge until clear, bubble-free brake fluid emerges.

Close vent valve.

Carry out the same procedure on the front left wheel brake .

NOTE: The clutch slave cylinder must be scavenged in vehicles with manual gearbox.

Switch off bleeder unit and remove from expansion tank.

Check brake fluid level. If necessary, top up/draw off to "Maximum" level.

Close expansion tank.

NOTE: Pay attention to seal (1) in sealing cap.

Courtesy of BMW OF NORTH AMERICA, INC.
