51 33 000 Removing and installing (replacing) power window regulator in left or right front door

Necessary preliminary tasks:

• Refer to REMOVING SIDE WINDOW .

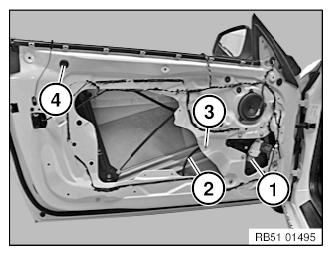

Disconnect plug connection (1).

Unclip drive cable (2) in area (3).

Raise cover (4) and release nuts underneath.

Tightening torque 51 33 2AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

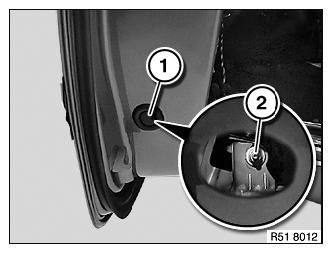

Lift cover (1) and slacken nut (2).

Tightening torque 51 33 2AZ .

Installation note:

Nut is tightened during adjustment of side window.

Courtesy of BMW OF NORTH AMERICA, INC.

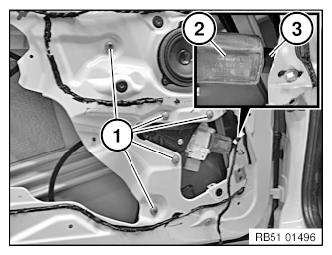

Unscrew nuts (1).

Tightening torque 51 33 2AZ .

Feed out power window regulator from door.

Installation note:

Make sure power window motor (2) is correctly fitted in guide (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Remount FLAT MOTOR FOR POWER WINDOW REGULATOR .
