Remove charge air line

Precondition

• Ignition is switched off.

Preliminary work

• Refer to REMOVING THE INTAKE FILTER HOUSING .
• Refer to REMOVING CLEAN AIR PIPE .

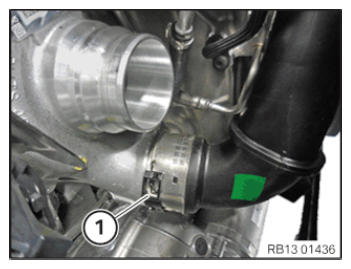

• Unlock and release charge air line (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

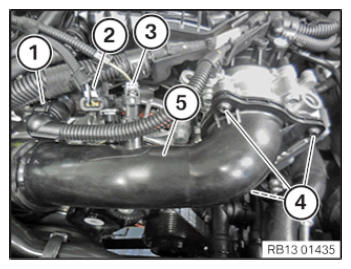

• Unlock and loosen connector (1).
• Unlock and loosen connector (2).
• Unlock and loosen connector (3).
• Loosen screws (4).
• Guide out and remove charge air line (5).

  Courtesy of BMW OF NORTH AMERICA, INC.
