13 54 030 Removing and installing/sealing throttle body (230i and 230i xDrive coupe/convertible)

Necessary preliminary tasks:

• Refer to REMOVING ACOUSTIC COVER .
• Refer to REMOVING DESIGN COVER .
• Refer to REMOVING CHARGE AIR LINE . (Release only)

Removal:

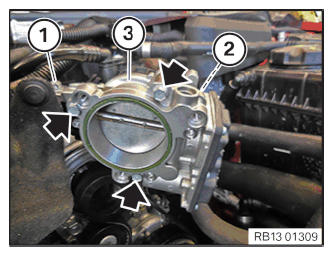

Release screw (1).

Loosen the screws along the arrows.

Unlock and disconnect plugs (2).

Feed out and remove throttle body (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Preparation for installation:

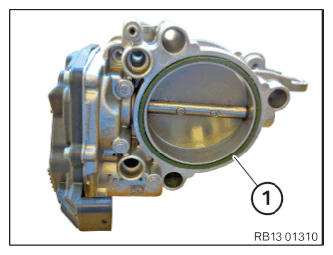

Replace sealing ring (1).

Part:  Sealing ring

Courtesy of BMW OF NORTH AMERICA, INC.

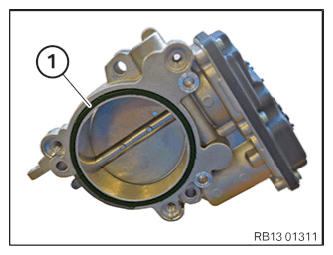

Replace sealing ring (1).

Part:  Sealing ring

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

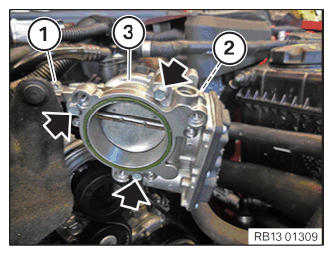

Connect connector (2) and lock.

Connector (2) must snap audibly into place.

Guide in throttle valve fitting (3) and install.

Tighten screws along arrows.

Tightening torque 13 54 1AZ .

Tighten screw (1).

Tightening torque 13 54 2AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Refer to INSTALLING CHARGE AIR LINE .
• Refer to INSTALLING THE ACOUSTIC COVER .
• Refer to INSTALLING DESIGN COVER .
