51 47 490 Removing and installing/replacing underbody protection (front) (2' Series coupe and convertible, 2017-2021): Overview

NOTE: Illustration only an example. Detail deviations (depending on engine version) are possible.

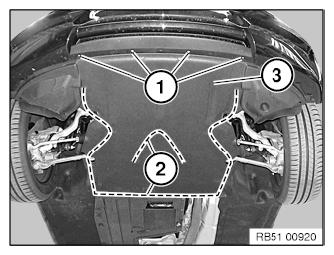

Release screws (1).

Tightening torque 51 75 1AZ .

Release all screws along line (2).

Tightening torque 51 75 1AZ .

Remove underbody protection (3).

Courtesy of BMW OF NORTH AMERICA, INC.

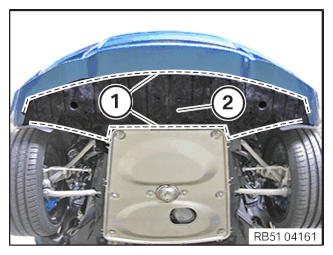

Only F87:

Release screws (1).

Tightening torque 51 75 1AZ .

Remove underbody protection (2).

Courtesy of BMW OF NORTH AMERICA, INC.
