51 47 162 Removing and installing/replacing right luggage compartment wheel arch panel (2' Series coupe models)

Special tools required:

• 00 9 325

Necessary preliminary tasks:

• Refer to REMOVING COVER FROM TAIL PANEL .
• Fold down backrest of right rear seat

Version with lashing eye:

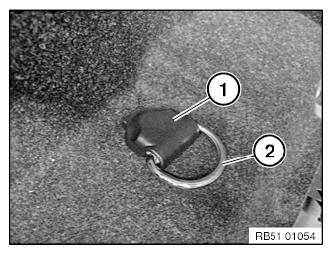

Lever out cover (1) and release screw underneath.

Tightening torque 51 47 1AZ .

Remove lashing eye (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Version with charging socket:

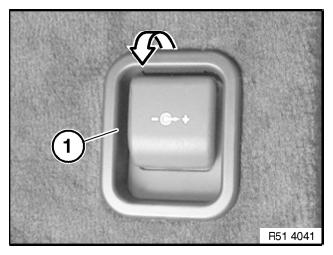

Lever out charging socket (1) in direction of arrow and disconnect plug connection.

Courtesy of BMW OF NORTH AMERICA, INC.

Version with oddments tray:

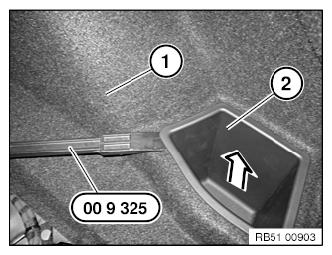

Unclip oddments tray (2) from wheel arch panel (1) using special tool 00 9 325  .

Courtesy of BMW OF NORTH AMERICA, INC.

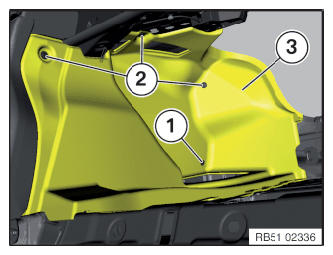

Pull out and detach fuel tank release (1).

Release clamps (2).

Feed out wheel arch panel (3).

Installation note:

Replace faulty clips (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement (depending on version):

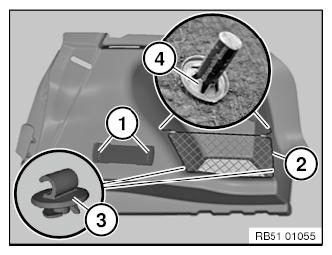

Unclip tensioning strap (1).

Detach luggage compartment net (2) at holder (3).

Release lock washer (4) and feed out luggage compartment net (2).

Unscrew holder (3).

Courtesy of BMW OF NORTH AMERICA, INC.
