51 41 017 Removing and installing or replacing cover on door handle, front left or right (2' Series coupe and convertible, 2017-2021)
Special tools required:
- 00 9 321
IMPORTANT:
Risk of damage!
When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.

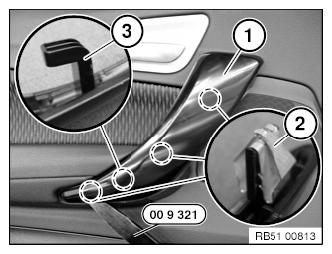

Insert special tool 00 9 321 from below into recess of cover (1).
When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.
Insert special tool 00 9 321 from below into recess of cover (1).
Lever out cover (1) with special tool 00 9 321 at clamps (2).
Feed out cover (1) downwards from retaining hooks (3).
Installation note:
Firstly feed in cover (1) with retaining hook (3) into door trim panel, then clip into door trim panel.
Installation note:

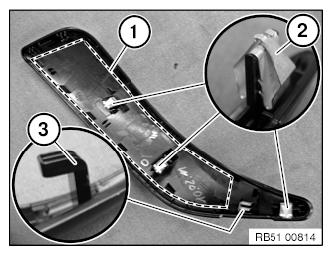

Following parts of cover must not be damaged or missing.
