Home >> BMW >> 2021 >> M240i 2D Convertible, Automatic Trans >> Repair and Diagnosis >> Collision >> Body Panels >> Collision - Body Panel Repair (F22 & F23) >> 41 61 Hood >> Check Hinge For Engine Compartment Lid

Check Hinge For Engine Compartment Lid

Necessary preliminary tasks:

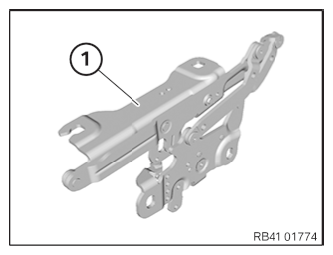

Open and close hinge (1).

Visual inspection for damage.

Test result Solution
Hinge is stiff Replace hinge
Visible damage Replace hinge
G15357138Courtesy of BMW OF NORTH AMERICA, INC.
