Removing and installing/replacing vent valve for brake caliper (2' Series coupe and convertible, 2017-2021)

Raise vehicle.

Removal:

Press brake pedal down to floor and secure with pedal support.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The pedal support may only be released when the brake lines are reconnected.
This prevents brake fluid from emerging from the expansion tank and air from entering the system when the brake lines are opened.

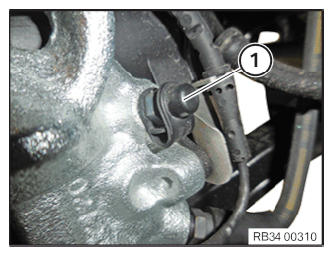

Remove the dust cap (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Remove vent valve (1).

Attention!

Collect escaping brake fluid in a suitable collecting vessel.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Attention!

The bore hole must be free of contamination!

Courtesy of BMW OF NORTH AMERICA, INC.

Install vent valve (1).

Tightening torque: 34 00 1AZ .

Mount the dust cap (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Remove pedal support.

Courtesy of BMW OF NORTH AMERICA, INC.

Required reworking:

Refer to BLEED BRAKE SYSTEM (EXCEPT M SPORT BRAKE) , or BLEED BRAKE SYSTEM (M SPORT BRAKE) . .
