Attaching cowl panel cover

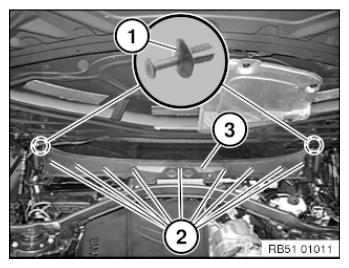

• Check the expanding rivets or clips (1) for damage and replace if necessary.
• Check the cowl panel cover (3) for correct fit.
• Close the snap fasteners (2) beginning from the center.

  The snap fasteners are closed correctly when the arrow tips point to each other.

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE COVER IN THE ENGINE COMPARTMENT ON THE RIGHT .
• Refer to INSTALLING THE COVER IN THE ENGINE COMPARTMENT ON THE LEFT .
• Refer to INSTALLING BOTH WIPER ARMS .
