Removing and installing/replacing center fresh air grille (2016-2022)

Special tools required:

Necessary preliminary work:

Only on vehicles from production date 07/17:

Remove decorative strip on dashboard in middle

Only in vehicles built before 07/17:

First unclip the fresh air grille (1) at the top using special tool 00 9 327 and then remove to the front.

Unlock and disconnect plug connections behind.

Attention!

Risk of damage!

Installation note:

The fresh air grille (1) must first be correctly engaged at the top on the dashboard!

Only afterwards , lock the bottom clamps.

After installation, ensure that the fresh air grille (1) is properly seated.

Courtesy of BMW OF NORTH AMERICA, INC.

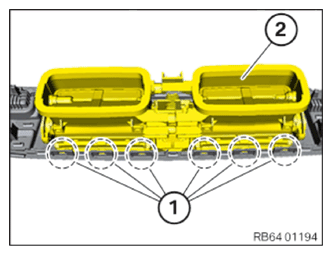

Disengage retaining lugs (1) at bottom on the fresh air grille (2).

Courtesy of BMW OF NORTH AMERICA, INC.

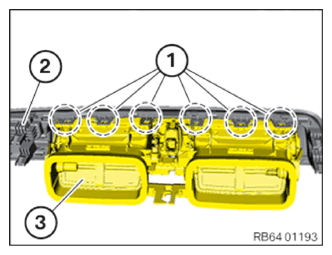

Disengage retaining lugs (1) at top on the fresh air grille (3).

Remove the fresh air grille (3) from the decorative strip (2).

Only on vehicles from production date 07/17:

Courtesy of BMW OF NORTH AMERICA, INC.

Clamps at marked points of fresh air grille (1) must be neither damaged nor bent.

Replace clamps if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:
