Removing and installing/replacing rear left or right side trim panel (2016-2022)

Necessary preliminary tasks:

• Remove ARMREST SIDE SECTION .
• Remove REAR SEAT .
• Remove TRIM PANEL FOR ROOF PILLAR AT THE REAR (C-PILLAR) .

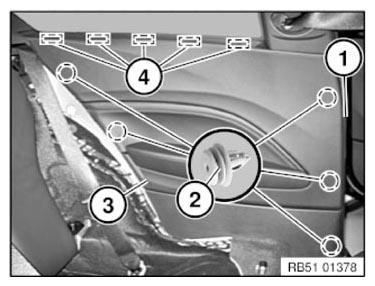

Detach edge protection (1) in area of side trim panel (3).

Release side trim panel (3) from clip (2) and clamps (4) and remove it.

Installation note:

Replace faulty clips (2) and clamps (4).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

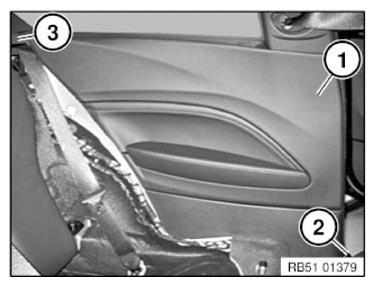

Feed in side trim panel (1) in the area of the covers (2 and 3).

Position side trim panel (1) correctly against the clamps and clips and clip it in.

Courtesy of BMW OF NORTH AMERICA, INC.
