Removing and installing or replacing trim for roof pillar at front (A-pillar), left or right (2016-2022)

IMPORTANT: Do not use any sharp-edged tools to remove trim (risk of damage to head airbag).

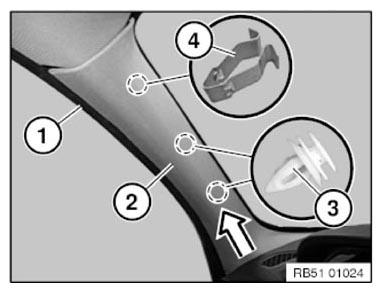

Detach edge protection (1) in area of trim panel (2).

Detach trim panel (2) from the first detent position of the clamp (4) toward the inside.

Loosen the trim panel (2) toward the top and thereby detach it from the clips (3).

Feed out trim panel (2) from dashboard and remove.

Installation note:

Make sure EDGE PROTECTION (1) is correctly seated.

Always replace clamps (4).

Courtesy of BMW OF NORTH AMERICA, INC.

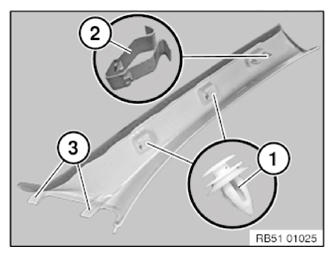

Installation note :

Always replace clamps (2).

Pry out any clips (1) remaining in the body and insert in cover

Replace faulty clips (1).

Make sure guides (3) is correctly seated in associated mounts.

Courtesy of BMW OF NORTH AMERICA, INC.
