Removing and installing/replacing rear center console cover (2016-2022)

Special tools required:

When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.

Loosen the latch mechanisms (1) left/right from the bottom with special tool 00 9 327.

Unclip cover (2) towards rear.

If necessary, unlock associated plug connections and disconnect.

Remove cover (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Latch mechanisms (1) on cover (2) must not be damaged or missing.

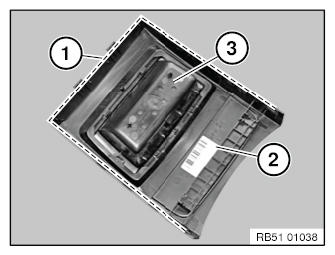

Replacement (depending on version):

Modify the tray (3).
MODIFY FRESH AIR GRILLE IN REAR PASSENGER COMPARTMENT .

Courtesy of BMW OF NORTH AMERICA, INC.
If applicable, modify the 12 V charging socket
