Removing and installing/replacing V-support (2016-2022)

IMPORTANT: Driving without V-support is not permissible (risk of damage to body).

Necessary preliminary tasks:

Removal:

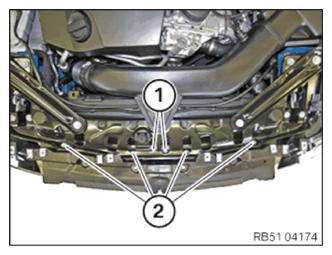

Release screws (1) and (2).

Courtesy of BMW OF NORTH AMERICA, INC.

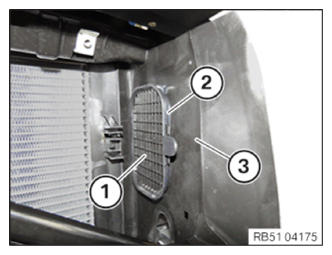

Detach grille (1) from air duct (2).

Detach air duct (2) from air duct (3).

Courtesy of BMW OF NORTH AMERICA, INC.

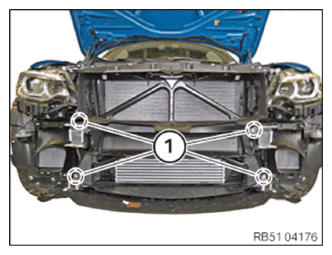

Release screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

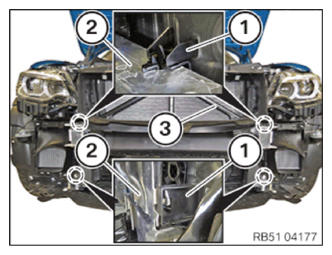

Detach air duct (1) from deformation elements 2).

Feed out air duct (1) with the V support (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Feed out air duct (1) with the V support (3).

Attach air duct (1) in the deformation elements (2).

NOTE: Make sure air duct (1) is correctly seated.

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down screws (1).

Tightening torque 51 11 7AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Feed in air duct (2) into air duct (3).

Feed in grille (1) into air duct (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down screws (1).

Tightening torque 51 11 7AZ .

Tighten down screws (2).

Tightening torque 51 11 13AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:
