Removing and installing/replacing driver's side fold-down compartment (2016-2022)
Special tools required:
- 00 9 325
When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.
Open fold-down compartment (1).
Detach fold-down compartment (1) from clips (2) with special tool 00 9 325 and remove in direction of arrow.
Installation note:
Clamps (2) on fold-down compartment (1) must not be damaged or missing.

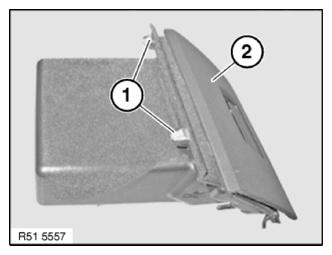

Installation note:
Clamps (1) on fold-down compartment (2) must not be damaged or missing.
