Install the VDP control unit

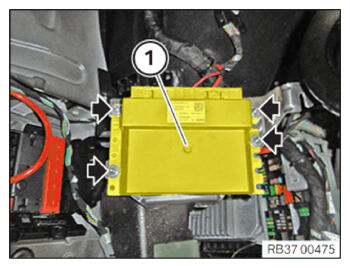

- Position the VDP control unit (1) on the holder.
- Tighten the nuts (arrows).
TIGHTENING TORQUES SPECIFICATION
| VDP control unit to holder | ||
|---|---|---|
| M6 | tightening torque | 6 Nm |
- Position the holder (4) with the VDP control unit.
- Replace the screw (2).
Parts: Screw
- Tighten the nuts (3) and the screw (2).
TIGHTENING TORQUES SPECIFICATION
| Control unit bracket to body | ||
|---|---|---|
| M6x18 screw Replace screw. |
tightening torque | 11.8 Nm |
| Nut M6 | tightening torque | 4.5 Nm |
- Connect all existing connectors (1) on the VDP control unit and lock them.
Follow-up work
- Refer to INSTALLING LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL ON RIGHT .
- Refer to INSTALLING LOADING EDGE TRIM .
- Refer to INSTALLING LUGGAGE COMPARTMENT FLOOR COVERING .
- Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
- Refer to PROGRAM/ENCODE THE VDP CONTROL UNIT .
- Refer to CARRYING OUT RIDE HEIGHT ADJUSTMENT .
