Installing the rear left upper seat belt
NOTE:
TECHNICAL INFORMATION
Clean all threaded belt connections with micro-encapsulated outer and internal threads.
Shavings or other debris must not remain in the components.
If a microencapsulated screw is reused, it must be coated with the following screw locking agent: Loctite 243, medium strength .
The screw connection must be completed within 10 minutes as hardening begins after this period.
Clean all threaded belt connections with micro-encapsulated outer and internal threads.
Shavings or other debris must not remain in the components.
If a microencapsulated screw is reused, it must be coated with the following screw locking agent: Loctite 243, medium strength .
The screw connection must be completed within 10 minutes as hardening begins after this period.

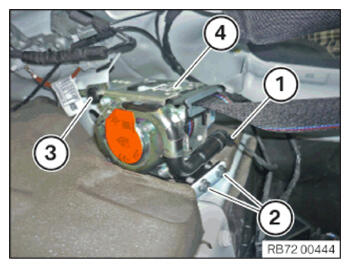

- Guide in and correctly position seatbelt retractor (4).
- Replace the screw (3).
Parts: Screw
- Tighten down screw (3).TIGHTENING TORQUES SPECIFICATION
Seat belt retractor to body Screw
Replace screwTightening torque 42 Nm - Tighten down screws (2).TIGHTENING TORQUES SPECIFICATION
Additional mount for rear seat belt retractor to body M6 screw Tightening torque 4.5 Nm - Connect connectors (1) and lock.
Follow-up work
- Refer to INSTALLING THE REAR LEFT STRAP FITTING .
- Refer to INSTALLING THE TRIM PANEL FOR THE STORAGE SHELF .
- Refer to INSTALLING THE C-PILLAR TRIM PANEL ON THE LEFT AND RIGHT .
- Refer to INSTALLING THE LEFT AND RIGHT SEAT BELT FINISHER STRIP .
- Refer to INSTALLING BOTH REAR SIDE TRIM PANELS .
- Refer to INSTALLING THE REAR SEAT .
- Refer to INSTALLING THE INNER DOOR SILL COVER STRIP ON THE LEFT AND RIGHT .
- Refer to CONNECTING ALL BATTERY GROUND LEADS .
- Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
