Suction oil in the rear differential
WARNING:
Hot fluids.
Risk of scalding!
Risk of scalding!
- Conduct all work in the vehicle wearing appropriate personal protective equipment only.
WARNING:
Contact with hazardous fluids.
Hazardous to health!
Hazardous to health!
- Note and follow safety instructions on containers.
- Conduct all work in appropriate personal protective equipment only.
NOTE:
RISK OF DAMAGE
Damage to rear differential.
Failure to comply with the oil specifications can result in serious damage to the rear differential.
Damage to rear differential.
Failure to comply with the oil specifications can result in serious damage to the rear differential.
- After completion of repair work, check the oil level in the rear differential.
- Use only the approved differential oil.
NOTE:
TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
CAUTION:
Contact with hazardous substances.
Health impairment.
Health impairment.
- Note and comply with the Safety Instructions on the containers and the instructions on the manufacturer's safety data sheet.
- Conduct all work in appropriate personal protective equipment only.
CAUTION:
Acid combustions may result from skin contact with oil or inhaling oil vapors.
Risk of acid burns from contact with oil!
Risk of acid burns from contact with oil!
- Wear safety goggles and hand protection.
- Ensure adequate ventilation.
- Connect special tool 2 457 963 to special tool 0 493 337 (00 2 080).

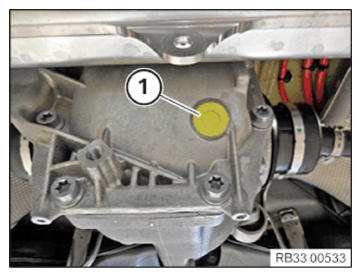

- Open the oil filler plug (1).
- Draw off the rear differential fluid.
