Secure the wishbone on the top left and right on the swivel bearing
Secure the wishbone on the top left and right on the swivel bearing
NOTE:
Perform the steps on the right and left side.

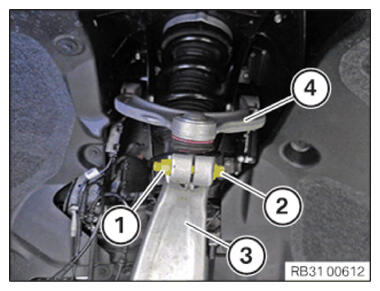

Fastening the wishbone to the top of the swivel bearing
Position the wishbone pin (4) in the bore of the swivel bearing (3).
Replace screw (2) and nut (1).
Parts:
Bolt, nut
Install the bolt (2).
Tighten nut (1).
TIGHTENING TORQUE SPECIFICATIONS
Upper wishbone to swivel bearing
M10
Replace screw and nut.
Tightening torque
56 Nm
Courtesy of BMW OF NORTH AMERICA, INC.
