Removing the left and center rear seat backrest

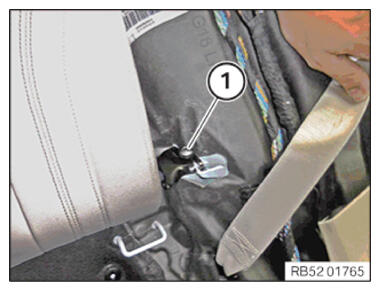

• Loosen screw (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

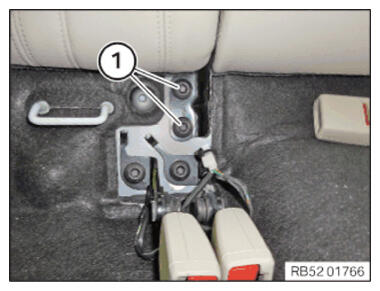

• Loosen screws 1.

Courtesy of BMW OF NORTH AMERICA, INC.

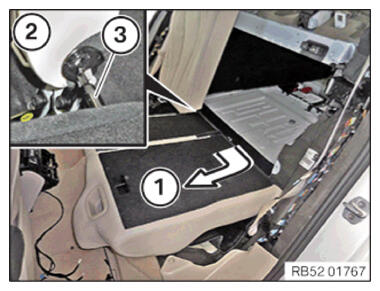

• Position the left and center rear seat backrest (1) as shown.
• Move the left and center rear seat backrest (1) in the arrow direction so that the guide pin (3) can be driven out of the rear seat backrest, right (2).
• Carefully remove the left and center rear seat backrest (1) in the arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.
