Removing the frame of the upper air flap control

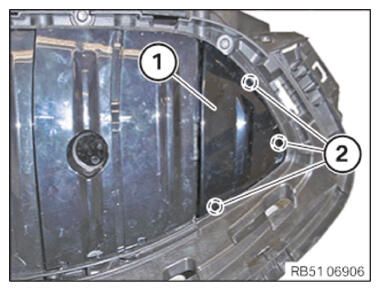

• Release the left cover (1) at detents (2).
• Take off the left cover (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

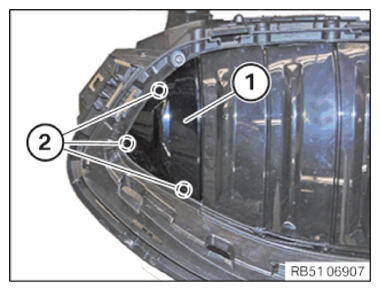

• Release the right cover (1) at detents (2).
• Remove the right cover (1).

Courtesy of BMW OF NORTH AMERICA, INC.

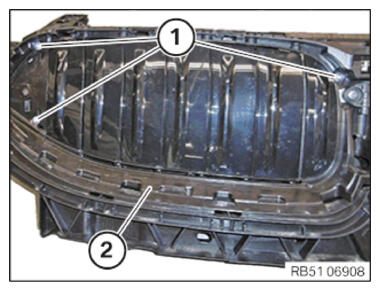

• Release the screws (1) on the right side of the frame (2) of the air flap control.

  Courtesy of BMW OF NORTH AMERICA, INC.

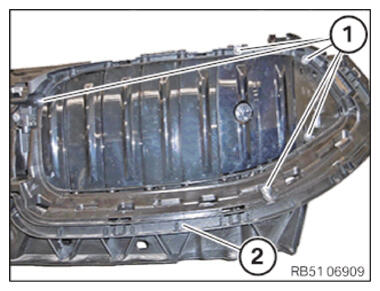

• Release the screws (1) on the left side of the frame (2) of the air flap control.
• Carefully turn around the air flap control with the frame (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

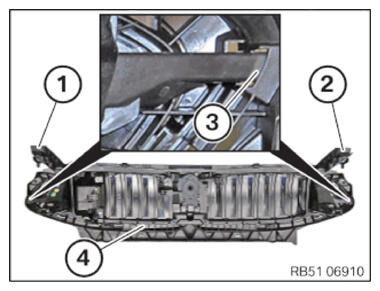

• Feed the holder (1) and (2) out of the guides (3).
• Take the holder (1) and (2) off of the frame (4) of the air flap control.

Courtesy of BMW OF NORTH AMERICA, INC.

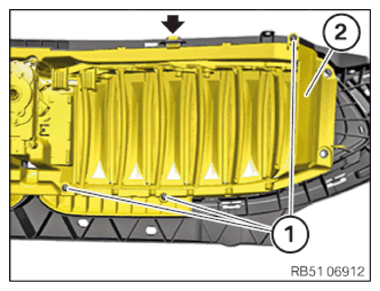

• Release the screws (1) on the left side of the air flap control (2).
• Unlock the lock (arrow).

  Courtesy of BMW OF NORTH AMERICA, INC.

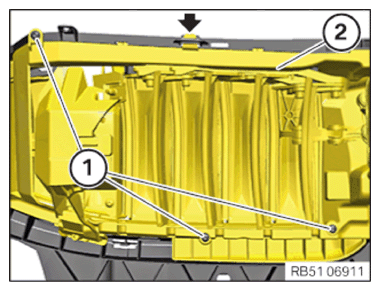

• Release the screws (1) on the right side of the air flap control (2).
• Unlock the lock (arrow).

  Courtesy of BMW OF NORTH AMERICA, INC.

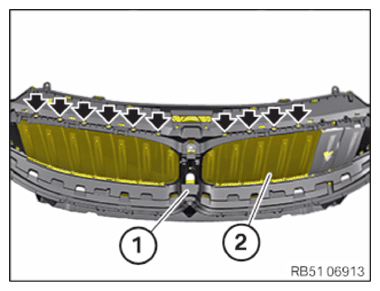

• Carefully feed the frame (1) onto the guide pin (arrow) of the air flap control (2).
• Remove the frame (1) from the air flap control (2).

Courtesy of BMW OF NORTH AMERICA, INC.
